认证及授权原理

平台认证认证使用Spring生态系统中用于实现Oauth2.0 认证和授权的框架。其中实现了Oahth2.0授权服务器和JSON Web Tokens （JWT)。 Oauth2.0具有模块化、安全性、扩展性和广泛使用等特点，使其成为构建安全认证和授权的理想选择。

Spring Authorization Server

平台基于Spring Authorization Server实现了平台的认证和授权功能。 Spring Authorization Server是一个开源的认证和授权服务器，它是Spring Security团队开发的一个新项目，旨在为OAuth 2.0和OpenID Connect（OIDC）提供一个功能齐全的、易于扩展的、生产就绪的解决方案。可以参考官网：https://spring.io/projects/spring-authorization-server

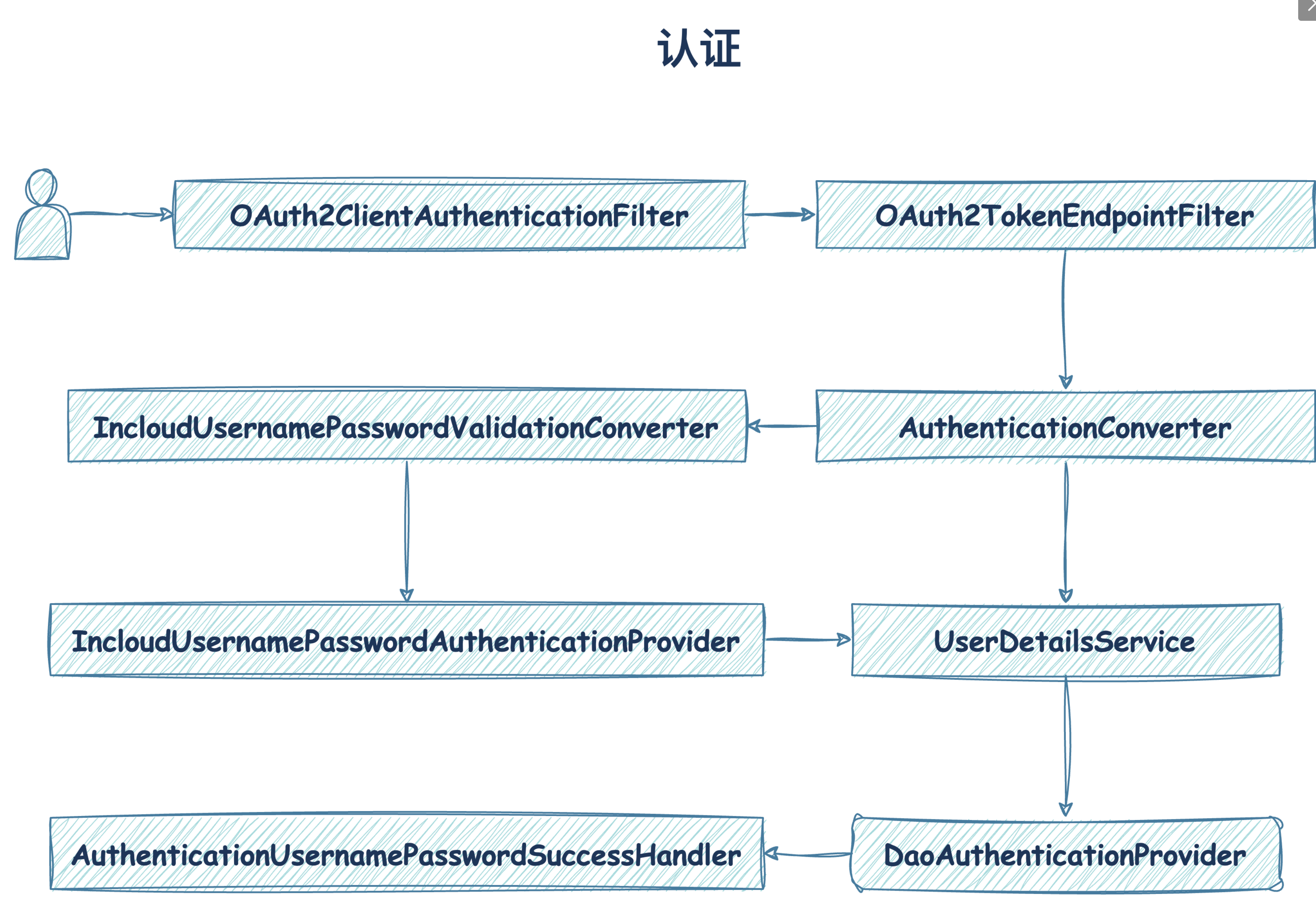

部分原理介绍

OAuth2ClientAuthenticationFilter

OAuth2ClientAuthenticationFilter 是用于处理Oauth2.0客户端身份验证和令牌交换的关键组件。处理Oauth2.0客户端凭证，当应用程序使用客户端凭证授权流程获取访问令牌时。负责将客户端ID和客户端密钥发送到授权服务器以获取令牌。

protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
        throws ServletException, IOException {

    if (!this.requestMatcher.matches(request)) {
        filterChain.doFilter(request, response);
        return;
    }

    try {
        Authentication authenticationRequest = this.authenticationConverter.convert(request);
        if (authenticationRequest instanceof AbstractAuthenticationToken) {
            ((AbstractAuthenticationToken) authenticationRequest).setDetails(
                    this.authenticationDetailsSource.buildDetails(request));
        }
        if (authenticationRequest != null) {
            validateClientIdentifier(authenticationRequest);
            Authentication authenticationResult = this.authenticationManager.authenticate(authenticationRequest);
            this.authenticationSuccessHandler.onAuthenticationSuccess(request, response, authenticationResult);
        }
        filterChain.doFilter(request, response);

    } catch (OAuth2AuthenticationException ex) {
        if (this.logger.isTraceEnabled()) {
            this.logger.trace(LogMessage.format("Client authentication failed: %s", ex.getError()), ex);
        }
        this.authenticationFailureHandler.onAuthenticationFailure(request, response, ex);
    }
}

OAuth2TokenEndpointFilter 是Spring Security Oauth2.0 框架中的一个关键过滤器。主要用于处理Oauth2.0授权服务器的令牌断点请求。在处理令牌请求之前，该过滤器会验证客户端的身份，确保客户端是否合法的并且具有授权权限。

@Override
protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
        throws ServletException, IOException {

    if (!this.tokenEndpointMatcher.matches(request)) {
        filterChain.doFilter(request, response);
        return;
    }

    try {
        String[] grantTypes = request.getParameterValues(OAuth2ParameterNames.GRANT_TYPE);
        if (grantTypes == null || grantTypes.length != 1) {
            throwError(OAuth2ErrorCodes.INVALID_REQUEST, OAuth2ParameterNames.GRANT_TYPE);
        }

        Authentication authorizationGrantAuthentication = this.authenticationConverter.convert(request);
        if (authorizationGrantAuthentication == null) {
            throwError(OAuth2ErrorCodes.UNSUPPORTED_GRANT_TYPE, OAuth2ParameterNames.GRANT_TYPE);
        }
        if (authorizationGrantAuthentication instanceof AbstractAuthenticationToken) {
            ((AbstractAuthenticationToken) authorizationGrantAuthentication)
                    .setDetails(this.authenticationDetailsSource.buildDetails(request));
        }

        OAuth2AccessTokenAuthenticationToken accessTokenAuthentication =
                (OAuth2AccessTokenAuthenticationToken) this.authenticationManager.authenticate(authorizationGrantAuthentication);
        this.authenticationSuccessHandler.onAuthenticationSuccess(request, response, accessTokenAuthentication);
    } catch (OAuth2AuthenticationException ex) {
        SecurityContextHolder.clearContext();
        if (this.logger.isTraceEnabled()) {
            this.logger.trace(LogMessage.format("Token request failed: %s", ex.getError()), ex);
        }
        this.authenticationFailureHandler.onAuthenticationFailure(request, response, ex);
    }
}

AuthenticationConverter

AuthenticationConverter 是一个接口，用于将来自Oauth2.0 令牌的信息转换为Spring Security中的 Authentication 对象。一般情况下，开发人员需要实现自定义的 AuthenticationConverter 接口来适应其应用程序的需求。并确保令牌中的信息能够被正确提取并用于身份验证。

public interface AuthenticationConverter {
Authentication convert(HttpServletRequest request);
}

IncloudUsernamePasswordValidationConverter 提取用户名和密码用于密码验证处理器把密码转换为明文。

private String usernameParameter = "username";
private String passwordParameter = "password";

private String loginTypeParameter = "loginType";

private final RegisteredClientMapper registeredClientMapper;

@Autowired
UserDetailsService userDetailsService;

@Override
public IncloudAuthenticationToken convert(HttpServletRequest request) {
    String username = obtainUsername(request);
    Optional.ofNullable(username).orElseThrow(() -> {
        log.error("用户名不能为空！");
        return new IncloudOAuth2AuthenticationException("用户名不能为空!");
    });
    String password = obtainPassword(request);
    password = (password != null) ? password : "";
    if (StrUtil.isNotEmpty(password)) {
        password = password.replace(" ", "+"); //处理一下AES加密有+号的问题
    }
    String authorization = request.getHeader("Authorization");
    String basic_ = null;
    try {
        basic_ = new String(Base64.getDecoder().decode(authorization.replaceAll("Basic ", "")), "UTF-8");
    } catch (UnsupportedEncodingException e) {
        log.error("提交的认证信息有误，请使用Authorization Basic形式提交！");
        throw new IncloudOAuth2AuthenticationException("提交的认证信息有误，请使用Authorization Basic形式提交！");
    }
    String clientId = StrUtil.subBefore(basic_, ":", false);
    RegisteredClient registeredClient = registeredClientMapper.getByClientId(clientId);
    String decrypetPasword = null;
    if (ObjectUtil.isNotEmpty(registeredClient) && registeredClient.getIsPwdRequired().equals(YesNo.YES.code)) {
        decrypetPasword = decodeByRSA(clientId, password, registeredClient.getEncryptionPrivateKey4Pwd(), registeredClient.getEncryptionPublicKey4Pwd());
    }
    if (clientId.contains(ClientInfo.INCLOUD.getName())) {
        decrypetPasword = decodeByRSA(clientId, password, SecretReadUtil.readSecretLocal().getPrivateKey(), SecretReadUtil.readSecretLocal().getPublicKey());
    }
    log.info("convert Before {} After {}", password, decrypetPasword);
    UsernamePasswordAuthenticationToken result = IncloudAuthenticationToken.unauthenticated(username, decrypetPasword);
    IncloudAuthenticationToken incloudAuthenticationToken = new IncloudAuthenticationToken(result.getPrincipal(), result.getCredentials());
    incloudAuthenticationToken.setClientId(clientId);
    if (clientId.contains(ClientInfo.INCLOUD.getName())) {
        incloudAuthenticationToken.requiredPwd(StrUtil.isNotEmpty(decrypetPasword) ? YesNo.YES.code : clientId.contains(ClientInfo.INCLOUD_INTERNAL.getName()) ? YesNo.NO.code : YesNo.YES.code);
    } else {
        incloudAuthenticationToken.requiredPwd(ObjectUtil.isNotEmpty(registeredClient) ? registeredClient.getIsPwdRequired() : YesNo.YES.code);
    }
    result.setDetails(getAuthenticationDetailsSource().buildDetails(request));
    userDetailsService.set(request.getHeader(loginTypeParameter));
    return incloudAuthenticationToken;
}

String decodeByRSA(String clientId, String content, String privateKey, String publicKey) {
    try {
        RSA rsa = SecureUtil.rsa(privateKey, publicKey);
        return rsa.decryptStr(content, KeyType.PrivateKey);
    } catch (Exception e) {
        if(!clientId.equals(ClientInfo.INCLOUD_INTERNAL.getName())){
            log.error("用户密码解密失败，rsa解密失败！");
            throw new IncloudOAuth2AuthenticationException("用户密码解密失败，rsa解密失败!");
        }
    }
    return null;
}

@Nullable
protected String obtainPassword(HttpServletRequest request) {
    return request.getParameter(this.passwordParameter);
}

@Nullable
protected String obtainUsername(HttpServletRequest request) {
    return request.getParameter(this.usernameParameter);
}

IncloudUsernamePasswordAuthenticationProvider

IncloudUsernamePasswordAuthenticationProvider 用户名密码认证器，用于实现基于数据库的用户身份验证，通过与数据库集成，提供了一种标准和安全的方式来验证用户的身份。以实现全面的身份验证和授权机制。

@Override
public Authentication authenticate(Authentication authentication) throws AuthenticationException {
    try {
        IncloudAuthenticationToken incloudAuthentication = (IncloudAuthenticationToken) authentication;
        //通过clientId获取到提过的来的客户端注册信息，最终完成生成token后，把token信息和客户端信息都存到redis中；
        RegisteredClient registeredClient = registeredClientRepository.findByClientId((incloudAuthentication).getClientId());

        RegisteredClientVo registeredClientVo = NumberUtil.isNumber(registeredClient.getClientId()) ? registeredClientService.findById(Long.valueOf(registeredClient.getClientId())) : registeredClientService.findByClientId(registeredClient.getClientId());
        if(ObjectUtil.isNotEmpty(registeredClientVo)){
            userDetailsService.set(new UserInfo
                    (registeredClientVo.getIsPwdRequired(),incloudAuthentication.getPrincipal().toString(),
                            registeredClientVo.getClientId(),registeredClientVo.getClientName()));
        }
        Authentication authenticate = super.authenticate(incloudAuthentication);
        if (authenticate.isAuthenticated()) {
            return getAccessToken(authenticate, registeredClient);
        }
        log.error("用户名密码校验失败！");
        throw new AuthenticationSecurityException("用户名密码校验失败！");
    } catch (Exception e) {
        log.error("用户名密码校验失败！");
        throw new AuthenticationSecurityException("用户名密码校验失败！", e);
    }
}

UserDetailsService

UserDetailsService 实现了 UserDetailsService 接口。它从数据库中加载用户相信信息，并将其封装为 LoginAppUser对象返回。这个用户详细对象包含了用户名、密码、权限等信息。供Spring Security使用。

@Override
public UserDetails loadUserByUsername(String username) {
    log.info("UserDetailsService loadUserByUsername username:{}", username);
    LoginAppUser loginAppUser = getLoginAppUser(username);
    if (ObjectUtil.isEmpty(loginAppUser)) {
        log.warn("未获取到用户信息:{}", username);
        throw new IncloudException("用户不存在,或账号密码错误!");
    } else if (!loginAppUser.isEnabled()) {
        throw new IncloudException("【用户已失效，请联系管理员核对身份信息】");
    }
    return loginAppUser;
}

DaoAuthenticationProvider

DaoAuthenticationProvider 主要是用于验证用户的身份，包括用户名和密码。它将接受到的用户名和密码与数据库中存储的用户凭据进行对比。以确认是否身份验证成功。它通过与用户详情服务一起工作。提供了一种标准和安全的方式来验证用户的身份，以及确保密码安全存储。

protected void additionalAuthenticationChecks(UserDetails userDetails,
			UsernamePasswordAuthenticationToken authentication) throws AuthenticationException {
    if (authentication.getCredentials() == null) {
        this.logger.debug("Failed to authenticate since no credentials provided");
        throw new BadCredentialsException(this.messages
                .getMessage("AbstractUserDetailsAuthenticationProvider.badCredentials", "Bad credentials"));
    }
    String presentedPassword = authentication.getCredentials().toString();
    if (!this.passwordEncoder.matches(presentedPassword, userDetails.getPassword())) {
        this.logger.debug("Failed to authenticate since password does not match stored value");
        throw new BadCredentialsException(this.messages
                .getMessage("AbstractUserDetailsAuthenticationProvider.badCredentials", "Bad credentials"));
    }
}

AuthenticationUsernamePasswordSuccessHandler

AuthenticationUsernamePasswordSuccessHandler是实现了AuthenticationSuccessHandler的一个是嫌累。用于处理成功身份验证事件。它定义了处理成功身份验证后的行为，通常包括重定向到某个页面，生成令牌等操作。

public interface AuthenticationSuccessHandler {
    default void onAuthenticationSuccess(HttpServletRequest request, HttpServletResponse response, FilterChain chain, Authentication authentication) throws IOException, ServletException {
        this.onAuthenticationSuccess(request, response, authentication);
        chain.doFilter(request, response);
    }

    void onAuthenticationSuccess(HttpServletRequest request, HttpServletResponse response, Authentication authentication) throws IOException, ServletException;
}

Last modified: 20 一月 2025
